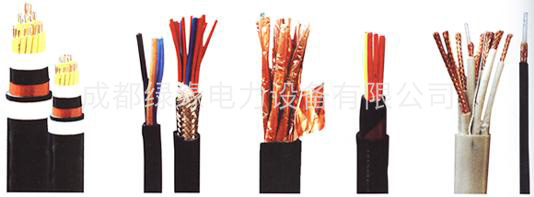

KVVP2-22 2×0.75-4×10控制电缆
一、产品介绍
控制屏蔽电缆用于交流额定电压450V/750V及以下控制监控回路及保护线路等场所。其中屏蔽型控制电缆，由于具有良好的评比性能得到电厂，电站的大量使用，电缆敷设在市内、电缆沟、管道、直埋、竖井等能承受较大机械拉力的固定场所。
二、使用特性
1、导体长期允许工作温度为70℃。
2、敷设时环境温度≥0℃。
3、最小弯曲半径：
无铠装层电缆，应不小于电缆外径的6倍。
有铠装或铜带屏蔽结构电缆，应不小于电缆外径的12倍。
有屏蔽结构的软电缆，应不小于电缆外径的6倍。
KVVP2-22 2×0.75-4×10控制电缆参数：
| 芯数及导体标称截面mm² | 导体结构 | 绝缘厚度mm | 铜带厚度mm | 钢带厚度mm | 护套厚度mm | 电缆近似外径mm | 电缆近似重量kg/km | ||||
| 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | ||||
| 2×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.0 | 12.4 | 189 | 228 |
| 2×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.3 | 12.7 | 202 | 242 |
| 2×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.2 | 13.2 | 236 | 265 |
| 2×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.4 | 15.0 | 287 | 306 |
| 2×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.4 | 15.8 | 340 | 387 |
| 2×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.4 | 16.8 | 404 | 454 |
| 2×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 19.2 | 19.4 | 598 | 607 |
| 3×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.3 | 12.8 | 207 | 249 |
| 3×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.7 | 13.1 | 223 | 266 |
| 3×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.6 | 13.7 | 264 | 295 |
| 3×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.9 | 14.5 | 328 | 348 |
| 3×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.9 | 16.4 | 397 | 450 |
| 3×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 16.0 | 17.5 | 483 | 538 |
| 3×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 20.1 | 20.3 | 727 | 736 |
| 4×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.9 | 13.5 | 230 | 278 |
| 4×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.3 | 13.8 | 250 | 299 |
| 4×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.4 | 14.4 | 300 | 335 |
| 4×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.8 | 15.4 | 379 | 400 |
| 4×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.9 | 17.5 | 466 | 526 |
| 4×6 | 1/2.67 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 17.2 | 18.7 | 574 | 638 |
| 4×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 21.7 | 21.9 | 877 | 886 |
