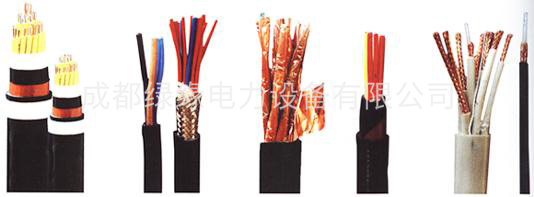

KVVP2-22 5×0.75-7×10控制电缆
一、产品介绍
控制屏蔽电缆用于交流额定电压450V/750V及以下控制监控回路及保护线路等场所。其中屏蔽型控制电缆，由于具有良好的评比性能得到电厂，电站的大量使用，电缆意义敷设在市内、电缆沟、管道、直埋、竖井等能承受较大机械拉力的固定场所。
二、使用特性
1、导体长期允许工作温度为70℃。
2、敷设时环境温度≥0℃。
3、最小弯曲半径：
无铠装层电缆，应不小于电缆外径的6倍。
有铠装或铜带屏蔽结构电缆，应不小于电缆外径的12倍。
有屏蔽结构的软电缆，应不小于电缆外径的6倍。
KVVP2-22 5×0.75-7×10控制电缆参数：
| 芯数及导体标称截面mm² | 导体结构 | 绝缘厚度mm | 铜带厚度mm | 钢带厚度mm | 护套厚度mm | 电缆近似外径mm | 电缆近似重量kg/km | ||||
| 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | ||||
| 5×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.5 | 14.2 | 255 | 308 |
| 5×1 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.9 | 14.6 | 278 | 334 |
| 5×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.2 | 15.3 | 338 | 377 |
| 5×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.8 | 16.4 | 433 | 455 |
| 5×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 17.0 | 18.7 | 538 | 407 |
| 5×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 18.4 | 20.1 | 671 | 743 |
| 5×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 23.4 | 23.6 | 1033 | 1044 |
| 6×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.2 | 15.0 | 278 | 336 |
| 6×1 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.6 | 15.4 | 305 | 365 |
| 6×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.0 | 16.2 | 373 | 415 |
| 6×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 16.8 | 17.4 | 482 | 505 |
| 6×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 18.2 | 20.0 | 604 | 679 |
| 6×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 19.7 | 21.5 | 770 | 852 |
| 6×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 25.2 | 25.4 | 1195 | 1207 |
| 7×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.2 | 15.0 | 286 | 346 |
| 7×1 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.6 | 15.4 | 316 | 378 |
| 7×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.0 | 16.2 | 389 | 432 |
| 7×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 16.8 | 17.4 | 508 | 531 |
| 7×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 18.2 | 20.0 | 644 | 721 |
| 7×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 19.7 | 21.5 | 827 | 912 |
| 7×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 25.2 | 25.4 | 1291 | 1302 |
